Please send me S80 POS FOB price

Place of Origin : shenzhen

Brand Name : PAX

Model Number : PAX S80

Certification : PCI PTS 3.x MasterCard PayPass Visa payWave EMV PBOC qPBOC

Contact Now

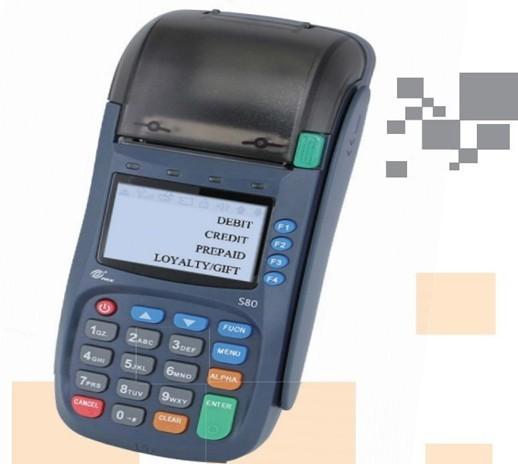

l S80 COUNTERTOP PAYMENT TERMINAL

S80 is an advanced countertop POS terminal which combines innovation­, durability and high performance to assure faster, more reliable transactions.

The PCI PTS 3.x approved S80 offers advanced connectivity, equipped with various communication technologies such as GPRS / 3G (WCDMA), Ethernet and PSTN. An intuitive ATM-style interface and ergonomic keypad make operation easier for merchant and consumer alike.

The S80 comes with inbuilt contactless and powerful ARM11 processor, enabling support for multiple payment and value-added applications, making this countertop terminal one of the most reliable in the world.

PCI PTS 3.x certified


High speed ARM 11 processor


Large Memory Capacity


USB & 3G connectivity


Optional built-in Contactless - PayPass, payWave

Processor
32-bit ARM11

Memory
192MB (128MB Flash, 64MB SDRAM)

Display
128 x 64 pixel LCD, White backlit

Keypad
10 numeric / letter & 8 function keys
4 ATM keys, 1 Power ON / OFF key

Printer
Thermal printer, Speed: 25 lps
Standard paper roll: 58mm (2.25 in.)

Magnetic Card ReaderTrack 1 / 2 / 3, bi-directional, ISO7812

Smart Card Reader1 user card, EMV

Contactless Card Reader (built-in)
MasterCard PayPass

Visa payWave
ISO / IEC 14443 Type A / B
Mifare® compliant

Felica
Maximum effective distance up to 4cm
4 RF Indicators: Red, Yellow, Blue, Green

Card Slots
3 SAMs, ISO7816
2 SIMs (optional)

Communication
Modem:
Sync. (HDLC, up to 9600bps)
Asnyc. (V.92, up to 56kbps)
Ethernet (optional)
GPRS or 3G (WCDMA) (optional)

Peripheral Ports1 x PINPad, 1 x RS232, 1 x Ethernet,
1 x Line, 1 x mini USB (OTG)

Security
PCI PTS 3.x approved
DUKPT, Master / Session, DES, 3DES
ANSI / ISO9564 format 0,1,3
PIN ciphered key algorithm
ANSI X 9.9 / X 9.19 MAC algorithm

Environmental
0°C to 50°C (32°F to 122°F) operating temperature
-20°C to 70°C (-4°F to 158°F) storage temperature
10% to 93% relative humidity, non-condensing

Voltage
Input: 100~240VAC, 50Hz / 60Hz, 1.5A
Output: 8.2VDC, 3A

Physical
Length: 216mm (8.5 in.)
Width: 95mm (3.74 in.)
Height: 86 mm (3.390 in.)

Weight
525g
